| Ram Tonnage | 25 Tons |
| Stroke | 6 in. | 152mm |
| Max Pressure | 10,000 PSI |
| Length | 16.5 in. | 419mm |
| Width | 6.5 in. | 165mm |
| Weight | 54 lbs. | 25 kg |
| Warranty | 3 Years (Must Register Product to Qualify for 3-Year Warranty Extension) |
| UPC | 816904021245 |

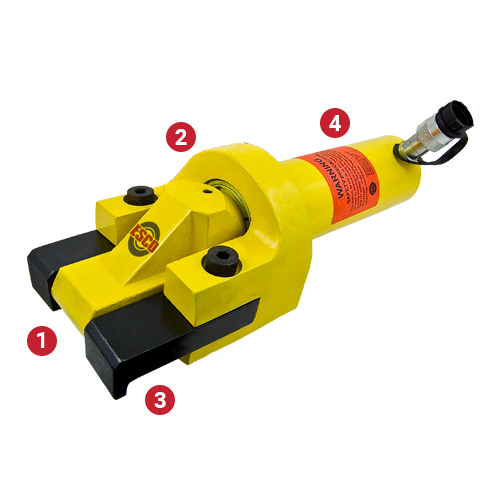

Giant Tire Bead Breaker – For 39″ Rims & Larger
Model #10103
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
- Use on 5 piece rims 39”, 45”, 51”, 57”, and 63” wheel sizes.
- In some cases you must first use [Model #10105] or the [Model #10100] bead breaker to start the movement of the rim flange; the [Model #10103] can then be used.
- [Model #10504], air/hydraulic pump is recommended for operation.
- The [Model #10627] Kit converts the [Model #10103] into a [Model #10103L], which is capable of Working on 63” Rims.
Rim Applications:
Available Kits:
