Dial Gauge Tire Inflator

Model #10960

The ESCO Dial Gauge Tire Inflator (Model #10960) is a handheld tire inflation unit designed for professional and hobbyist applications. The easy to read/measure large dial style, that reads both psi and bar, makes it ideal for any tire shop or personal garage. Constructed of a lightweight Aluminum die-cast body covered by a protective rubber sleeve, this unit is designed for maximum protection/strength of the inflation unit as well as comfort for extended use in the shop or at home. With an accuracy rating of +/- 2 psi and a 1-year warranty, this professional inflation unit is perfect for any application.

  • Aluminum Die Cast Unit with Rubber Protective Sleeve
  • Each unit is individually tested and calibrated (includes calibration certificate)
  • Pressed Steel Operating Lever – Single Trigger Style
  • Wire Sheath Hose – On flex area of hose for extra protection and to eliminate hose kinking and damage to air hose
  • Air Chuck Style: Single Straight (Clip-on)
  • Large Display for easy reading of psi/bar settings when inflating tire

Max. Inflation: 174 psi | 12 bar
Scale: 174 psi | 12 bar
Inlet Size: 1/4″ NPT Female
Hose Length: 20 in. | 500mm
Weight: 2.65 lbs. | 1.2 kg
Accuracy: +/- 2 psi @ 25-75 psi
Supply Pressure Max.: 200 psi | 13.79 bar

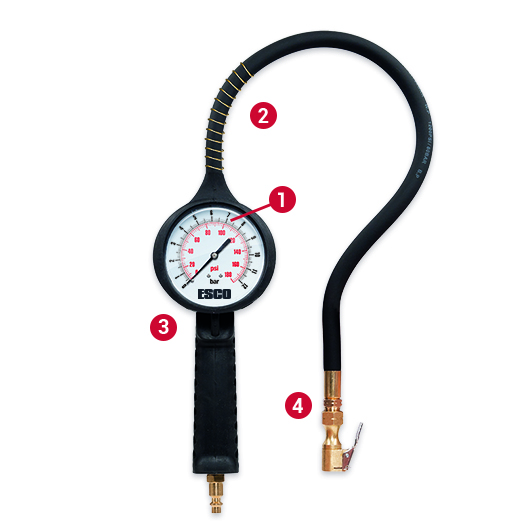

  1. Multi-Scale Gauge - psi & bar
  2. Wire Sheathed Hose - Eliminates Hose Kinking
  3. Operation: Inflate, Deflate, & Measure Air Pressure
  4. Includes: Single Straight Clip-on Style Air Chuck
