| Impact Drive Size | 1/2 in. | 13mm |
| Weight | 3 lbs, | 1.4kg. |
| Product Dimensions (L x W X H) | See spec sheet for more details |
| Packaging Dimensions (L x W X H) | 6in. x 7in. x 1 1/2in. | 152mm x 178mm x 38mm |
| Material | CR-MO (Chromium-Molybdenum) alloy steel |
| Application | Commonly found on class 3-8 trucks and equipment. (Ram 3500/5500, Chevrolet 3500/5500, Ford F-350/550, Isuzu NPR, Kenworth, Peterbilt, Freightliner, Mack, Volvo, etc.) |

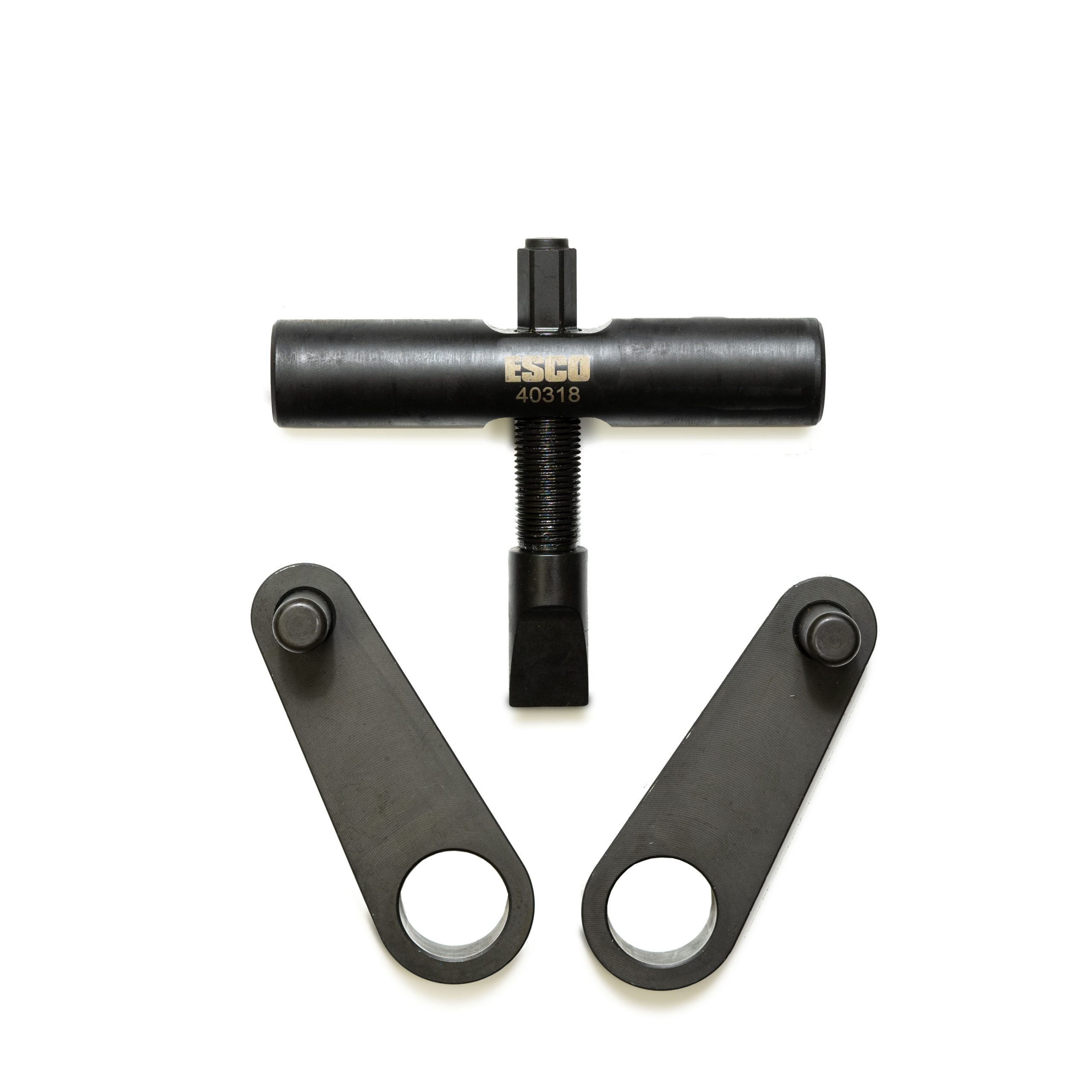

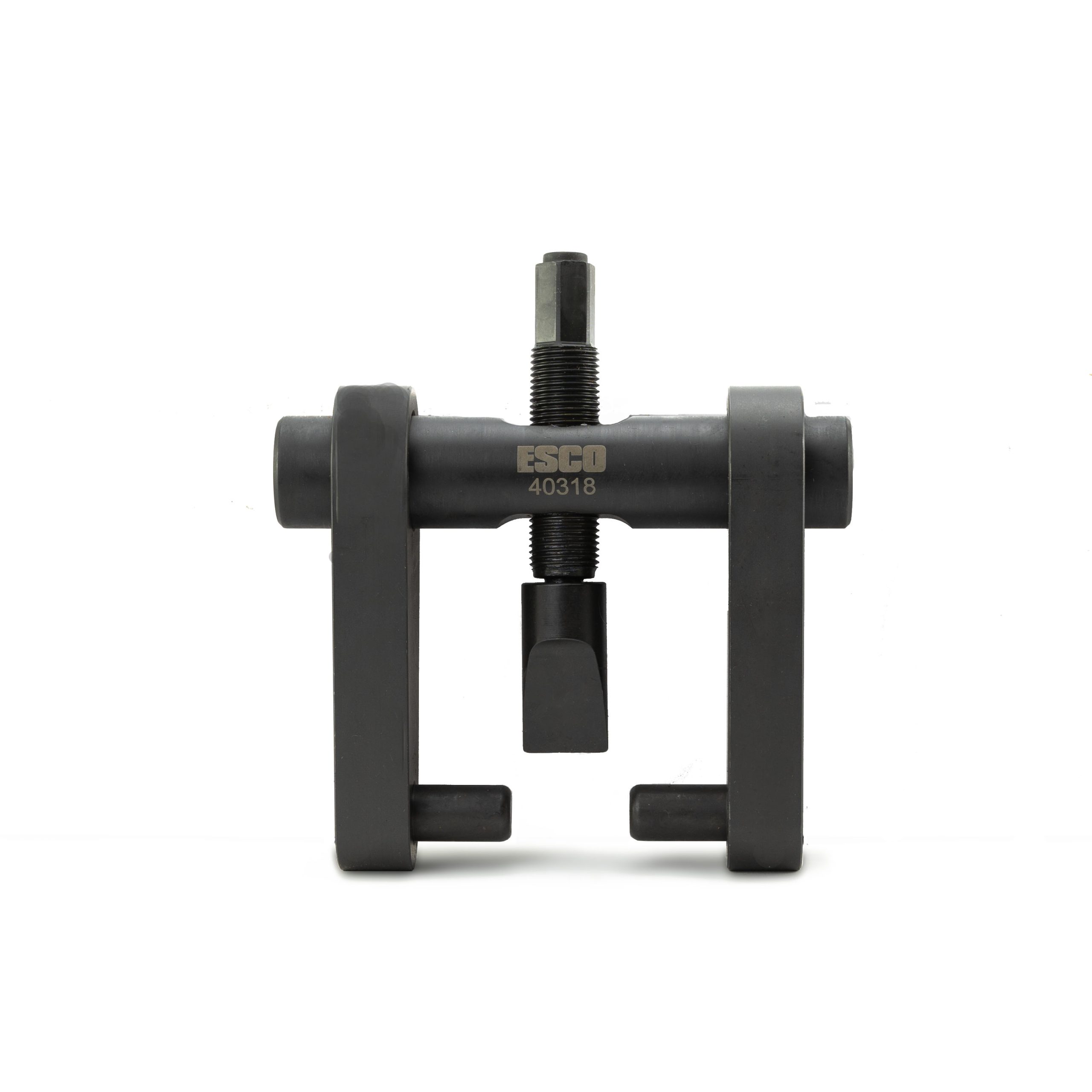

Pitman Arm Spreader
Model #40318
The ESCO Pitman Arm Spreader – For Chevrolet, Dodge, Ford, Freightliner, Isuzu, Kenworth, Mack Peterbilt, Volvo (Model 40318) is designed to fit Chevy 3500/5500, Dodge Ram 3500/5500, Ford F-350/550, Isuzu NPR, Kenworth, Peterbilt, Freightliner, Mack, Volvo and many other class 3-8 transportation trucks and equipment. Designed as an easy and versatile heavy-duty slip-on spreader, this tool can be used with up to a ½ in. impact wrench, hand ratchet, or breaker bar. The versatility of this tool allows for fitting on a wide range of pitman arm widths and is manufactured with the highest-strength steel components to ensure longevity and reliability.
- Heavy-Duty designed adjustable pulling arms designed to fit various pitman arm widths.
- Eliminate dangerous hammering or cutting torch methods.
- Designed to be used with up to a 1/2 in. impact tool, impact wrench, hand ratchet, or breaker bar.
- Easy slip-on and adjustable size make it ideal for multiple pitman arm extraction applications.
- Made of high-quality heavy-duty steel capable of withstanding rigorous and daily use in shop environments.
- Limited Lifetime Warranty
