| Glove Size | 3 1/2 in. | 89mm |
| Bottom Hole Opening Size | 2 1/4 in. | 57mm |
| Impact Drive Size | 1 1/4 in. | 32mm |
| Length of Screw | 5 in. | 127mm |
| Weight | 5.4 lbs. | 2.5kg |
| Product Dimensions (L x W X H) | See spec sheet for more details |
| Packaging Dimensions (L x W X H) | 8in. x 4.25in. x 5 in. | 203mm x 108mm x 127mm |
| Material | Heavy-Duty Casted Steel |
| Application | Designed to be used on most class 3-5 trucks and equipment (commonly used vehicle types: Chevy 3500/5500, Dodge Ram 3500/5500, Ford F-350 / 550, Isuzu, and NPR) |

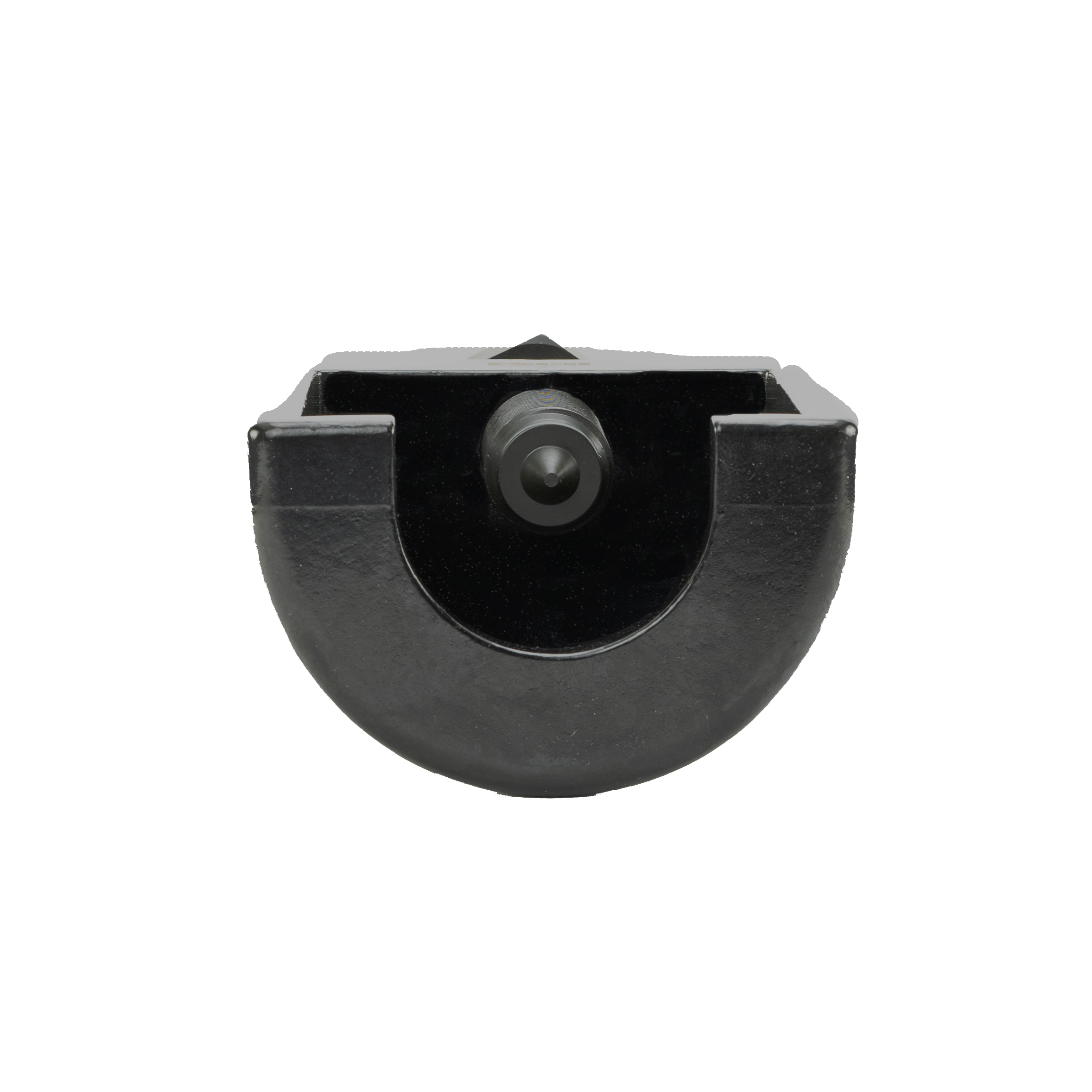

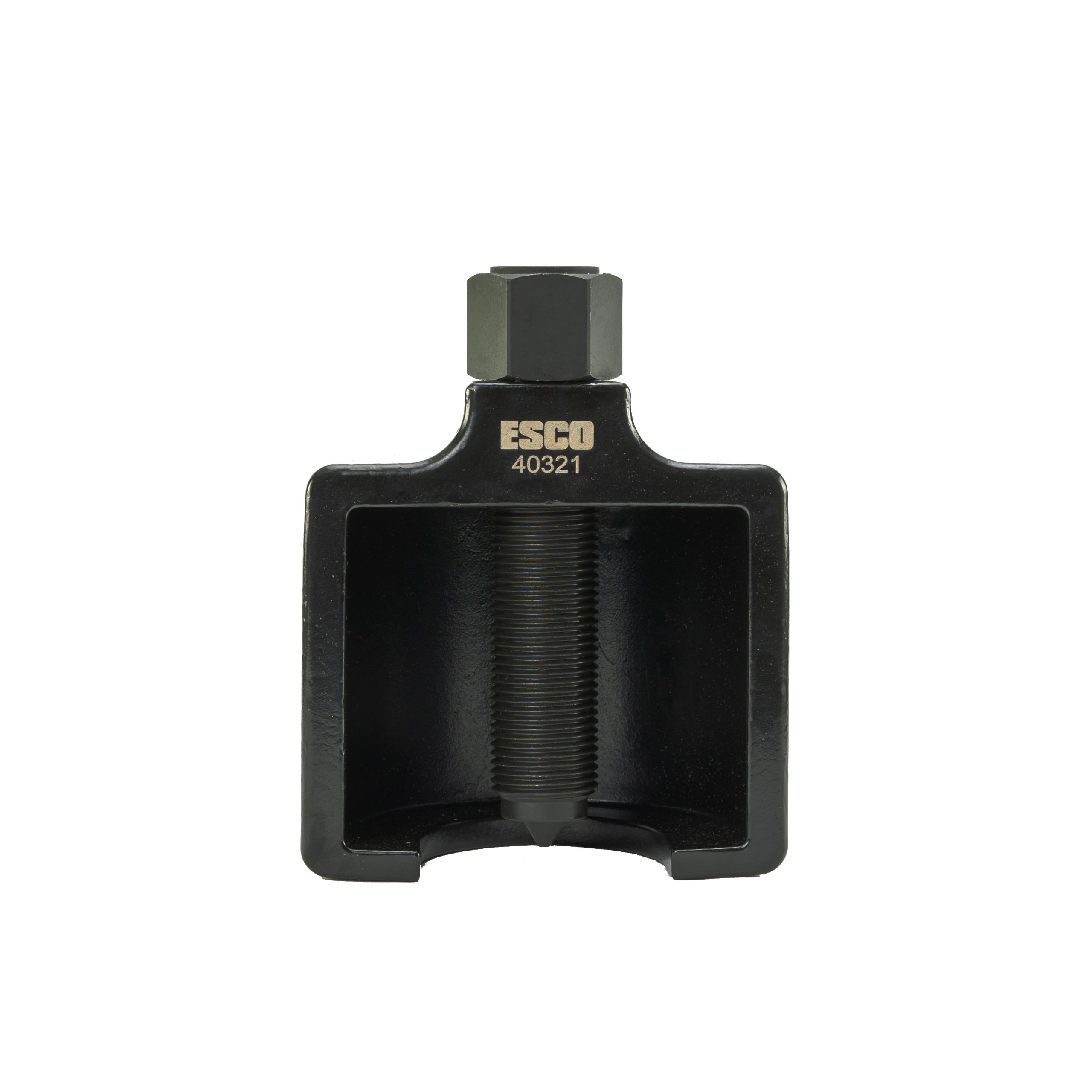

Pitman Arm Puller – Medium Duty
Model #40321
The ESCO Pitman Arm Puller (Model 40321) is designed to remove difficult pitman arms on most medium-duty pitman arms on medium-duty trucks, transportation buses, and other vehicles. Manufactured out of a heavy-duty quality steel casting to withstand high capacity pulling and rigorous usage out in the field in all conditions.
- Maximum glove opening of 3.5 inches and 3 inches high.
- Eliminate dangerous hammering or cutting torch methods.
- Can be used with up to a ½ inch air impact wrench, hand ratchet, or breaker bar.
- Designed to be used on most class 3-5 trucks and equipment (commonly used vehicle types: Chevy 3500/5500, Dodge Ram 3500/5500, Ford F-350 / 550, Isuzu, and NPR).
- Guaranteed to easily remove even the most stubborn pitman arms on steering boxes for medium-duty trucks, school buses, and other vehicles with a nut release pitman arm.
- Made of high-quality heavy-duty steel capable of withstanding rigorous and daily use in shop environments.
- Limited Lifetime Warranty
