| Lifting Capacity | 55 Tons |
| Stroke | 6 in. | 152mm |
| Max Pressure | 10,000 PSI |
| Min. Height* | 12 in. | 308mm |
| Max. Height* | 18 in. | 460mm |
| *Measurement includes the base plate | |

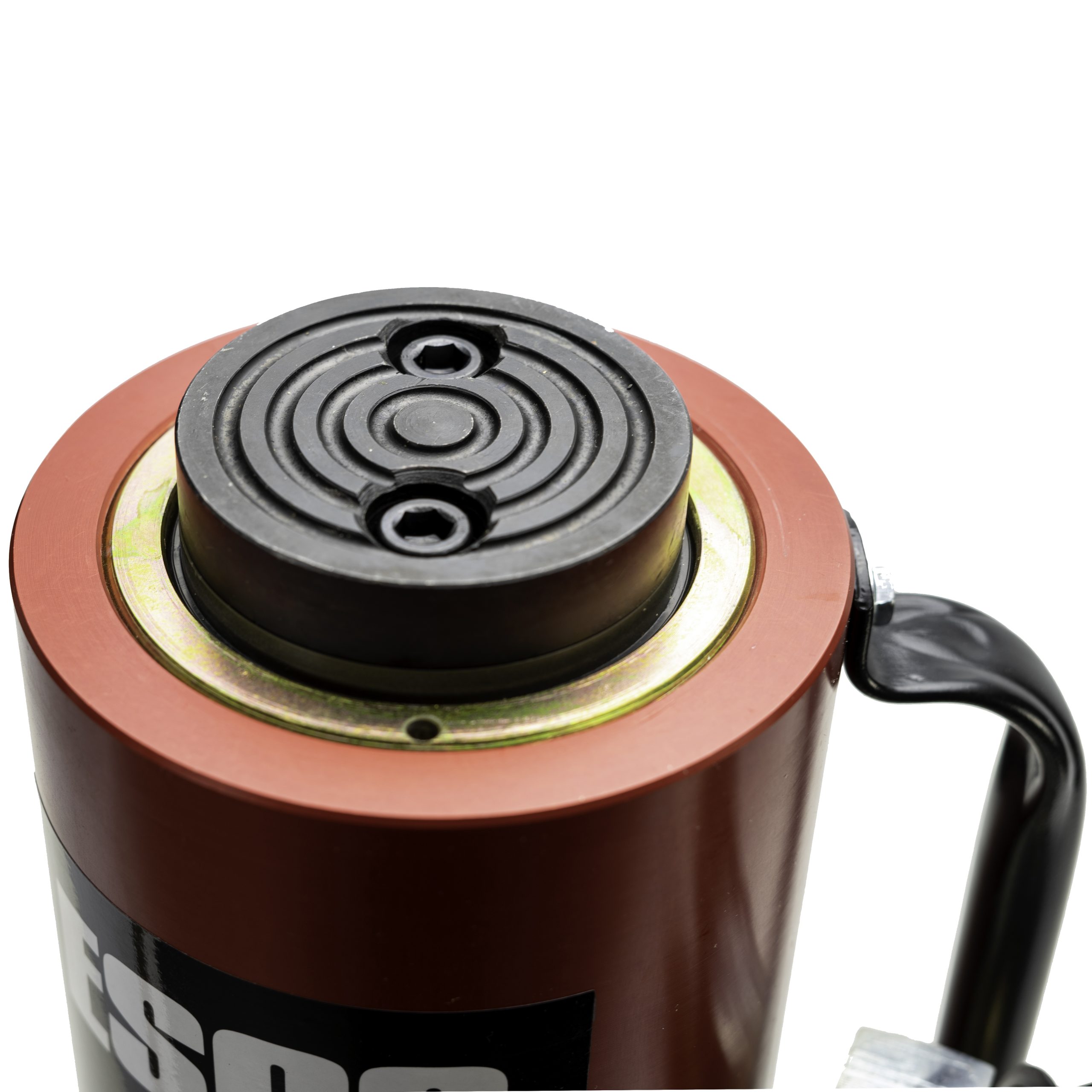

| Saddle Diameter | 3 in. | 79mm |
| Cylinder Width | 5.25 in. | 133mm |
| Cylinder Wall | 11/16 in. | 17mm |
| Base Plate | 8 x 8 in. | 203 x 203mm |
| Weight | 33 lbs. | 15 kg |
| Warranty | 3 Years (Must Register Product to Qualify for 3-Year Warranty Extension) |
| UPC | 816904021696 |

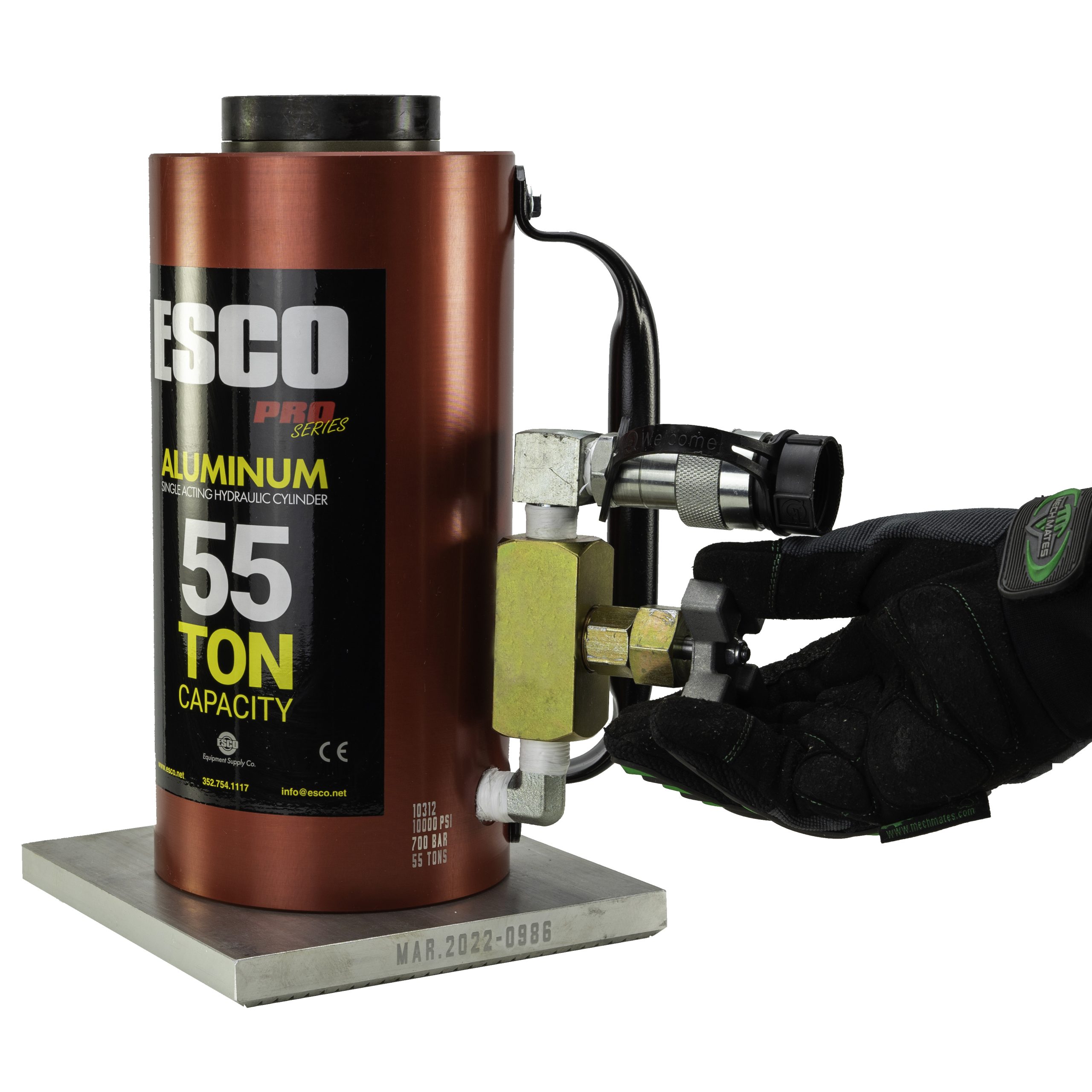

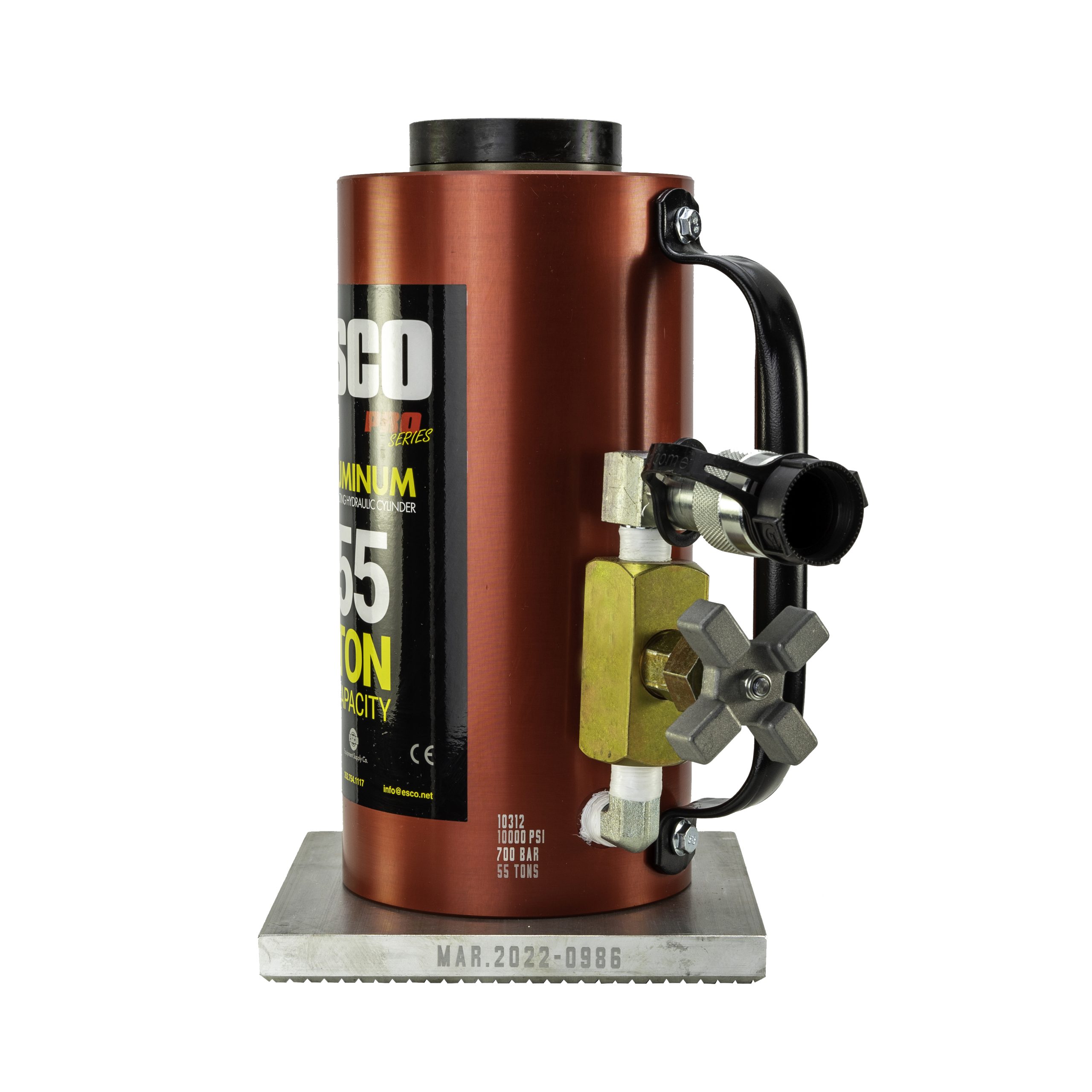

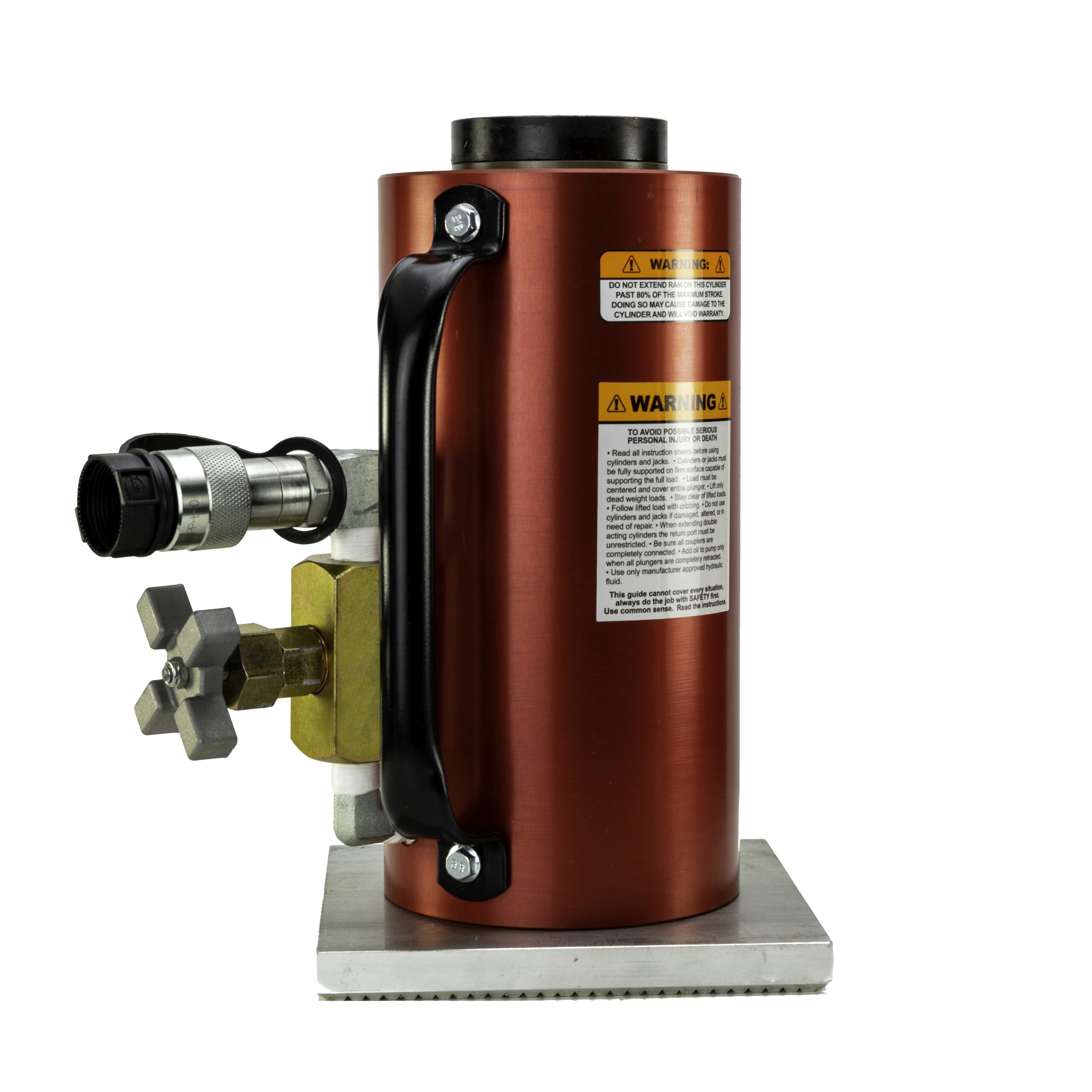

55 Ton Tall HD Lightweight Hydraulic Jack
Model #10312
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
The ESCO Hydraulic 55 Ton Tall Jack is the perfect jack for off highway tire work.
- Lightweight Aluminum constructed Hydraulic Cylinder
- For use with 10,000 psi pumps

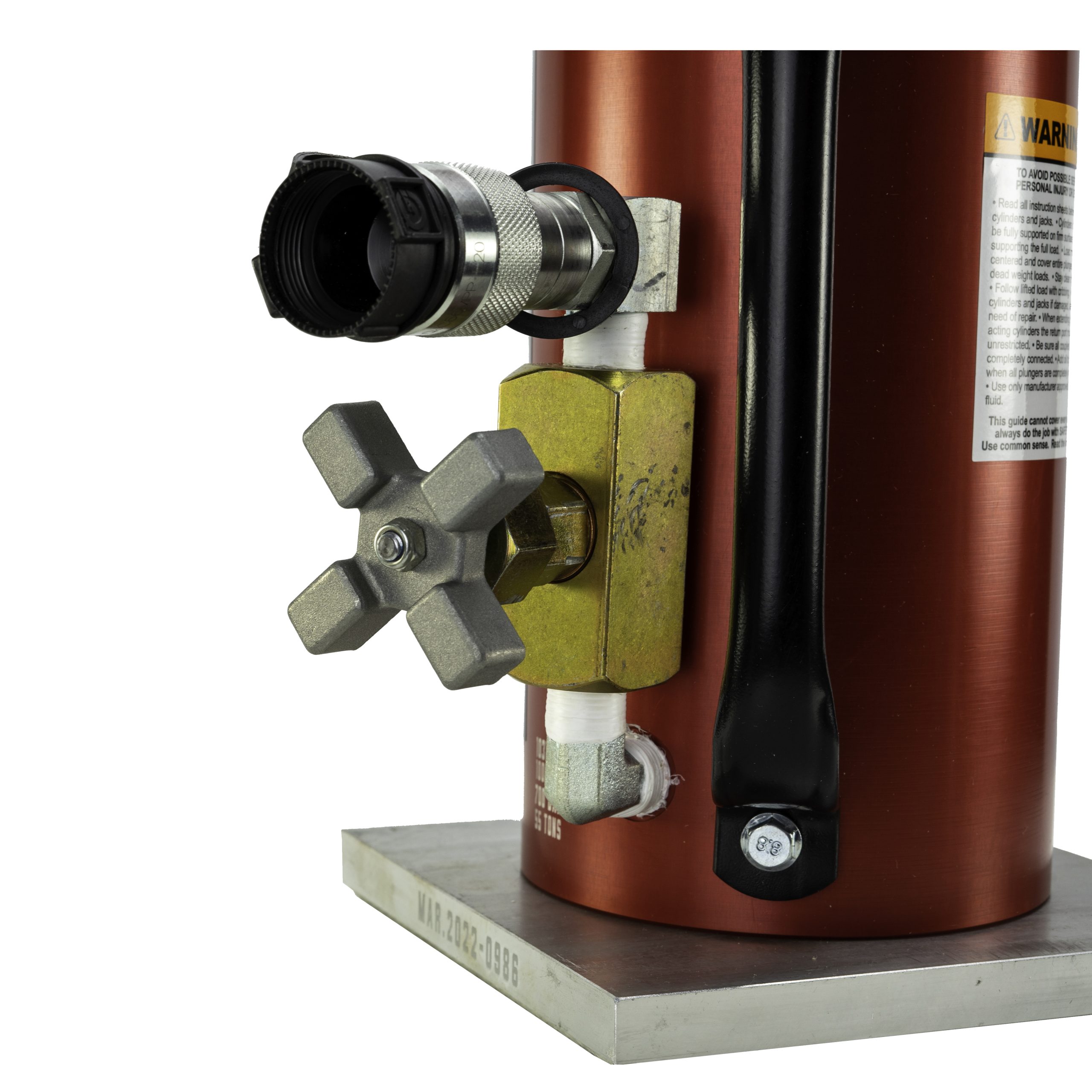

- Ships completely assembled with valve, coupler, and 8″ x 8″ [203mm x 203mm] base
- Ideal for OTR, mining, agricultural and construction applications
- Robust 11/16″ cylinder wall for heavy-duty use
