| Ram Tonnage | 55 Tons |
| Stroke | 10 in. | 254 mm |
| Max Pressure | 10,000 PSI |
| Min. Height* | 16 in. | 411 mm |
| Max. Height* | 26 in. | 662 mm |
| *Measurement includes the base plate | |
| Saddle Diameter | 3 in. | 79 mm |
| Cylinder Width | 5.25 in. | 133 mm |
| Cylinder Wall | 11/16 in. | 17 mm |
| Base Plate | 8 x 8 in. | 203 x 203 mm |
| Weight | 41 lbs. | 19 kg |
| Warranty | 3 Years (Must Register Product to Qualify for 3-Year Warranty Extension) |
| UPC | 816904021702 |

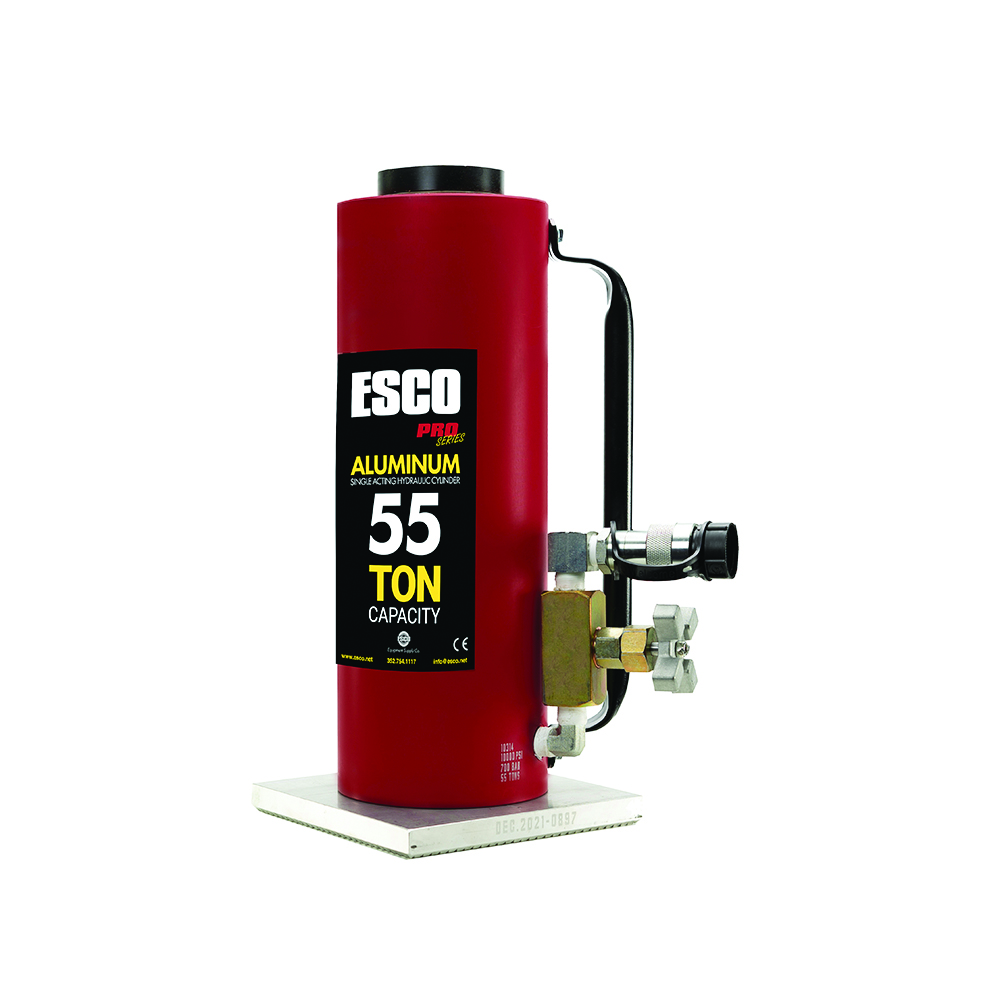

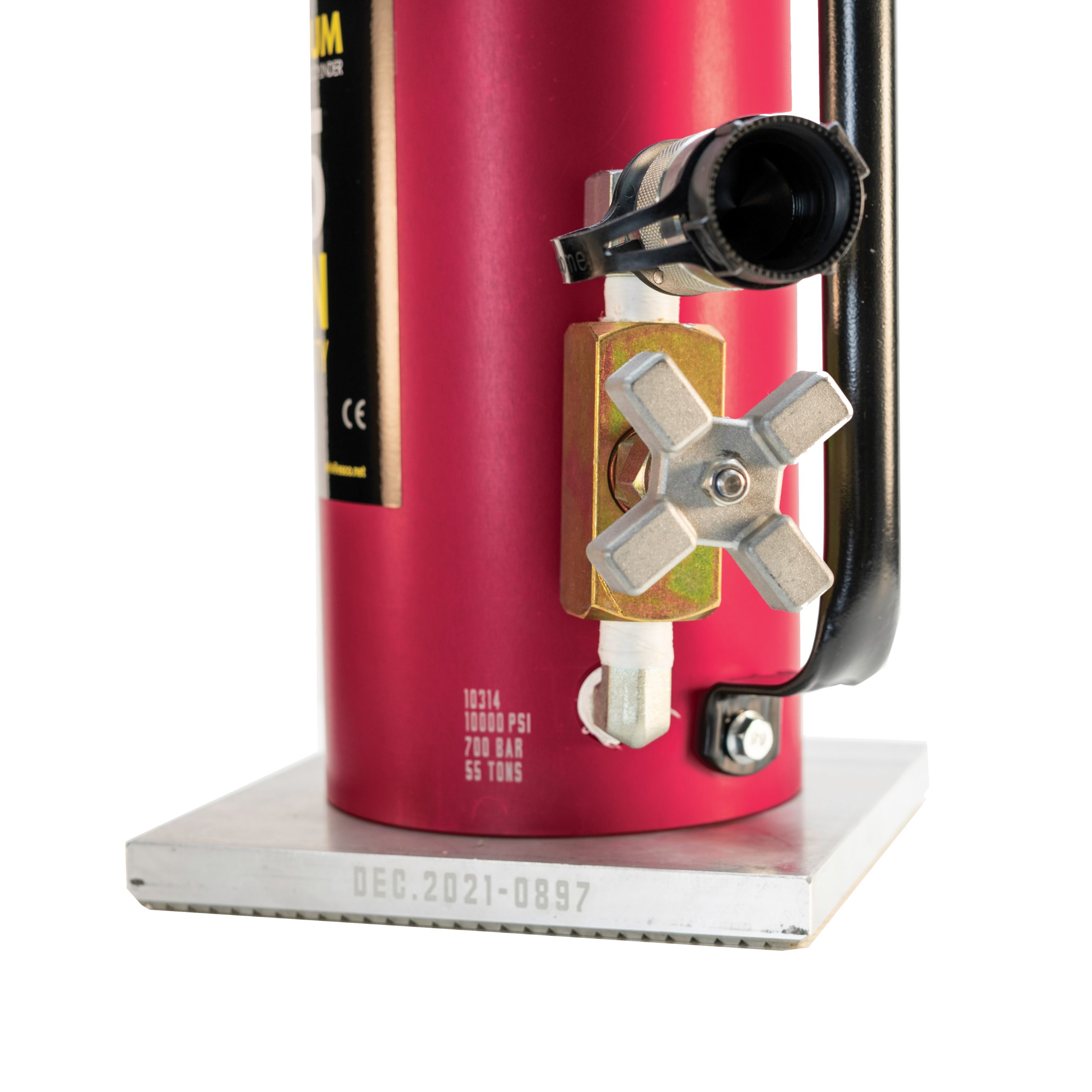

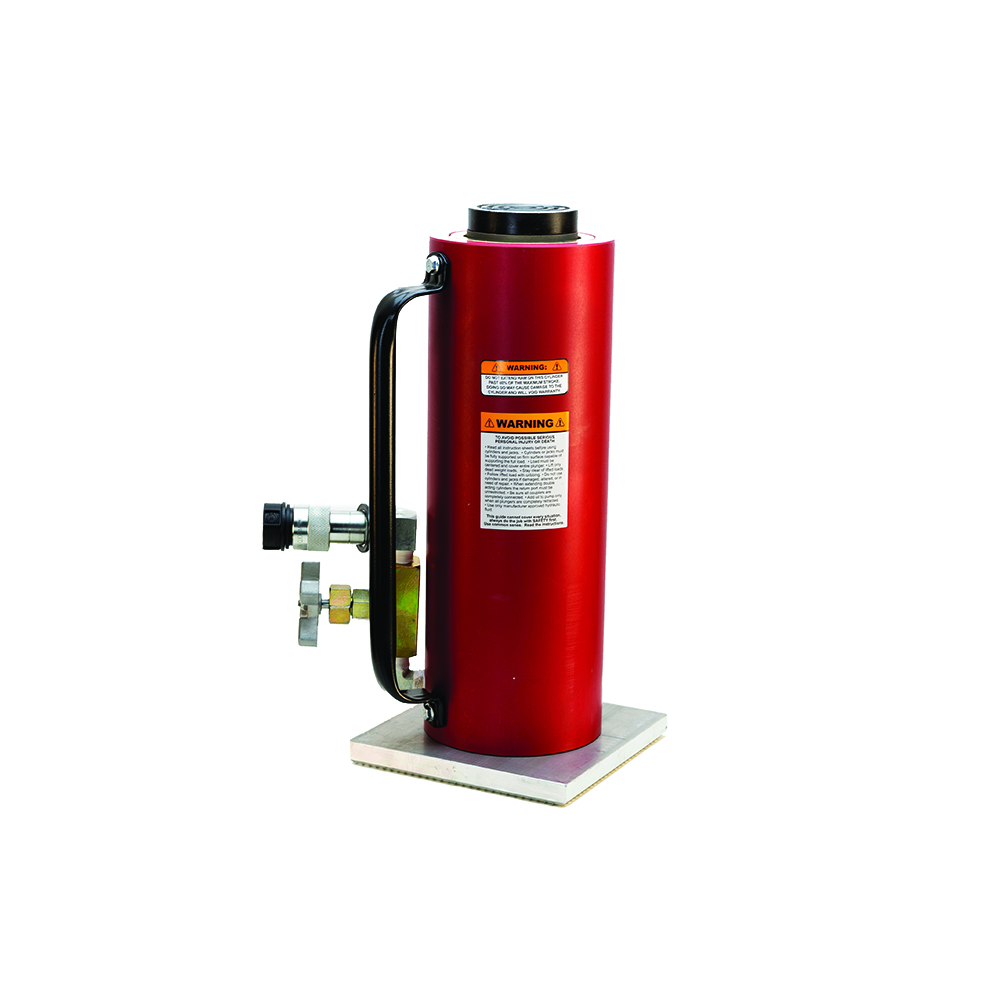

55 Ton High Lift HD Lightweight Hydraulic Jack
Model #10314
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
The ESCO Hydraulic 55 Ton High Lift Jack is the preferred jack for Mining.
- Lightweight Aluminum constructed Hydraulic Cylinder
- For use with 10,000 psi pumps
- Ships completely assembled with valve, coupler, and 8″ x 8″ [203mm x 203mm] base
- Ideal for OTR, mining, agricultural and construction applications
- Robust 11/16″ cylinder wall for heavy-duty use
