ESC3000 Giant Tire Bead Breaker – Dual Bead Breaker Kit

The ESC3000 OTR Giant Tire Bead Breaker Dual Bead Breaker Kit is a complete high-force hydraulic solution designed for breaking stubborn beads on large 5-piece OTR wheels from 49 in. to 63 in. Using two ESC3000 bead breakers powered by an ESCO Pro Series 10,000 PSI air hydraulic pump, this kit allows technicians to apply controlled, balanced pressure for faster, safer bead breaking on heavy mining, construction, and earthmoving equipment. The ESC3000’s long adjustable safety clamping jaws maintain constant contact with the wheel face, helping prevent tool movement or kick-out under load, while supporting a wide range of Rimex and Topy style OE wheel configurations commonly found in the field.

• Designed for large 5-piece OTR rims from 49 in. to 63 in. with pry bar or bead-loosening pockets.
• Dual bead breaker configuration applies balanced hydraulic force for faster bead separation and reduced service time.
• Long adjustable safety clamping jaws help prevent tool kick-out while maintaining secure wheel face contact.
• Compatible with Rimex and Topy style OE wheels used on Komatsu, Liebherr, LeTourneau, and Terex equipment.
• Powered by ESCO Pro Series 10,000 PSI air hydraulic pump with hands-free foot pedal control.
• Complete, service-ready kit ideal for field service trucks, shop environments, and remote job sites.

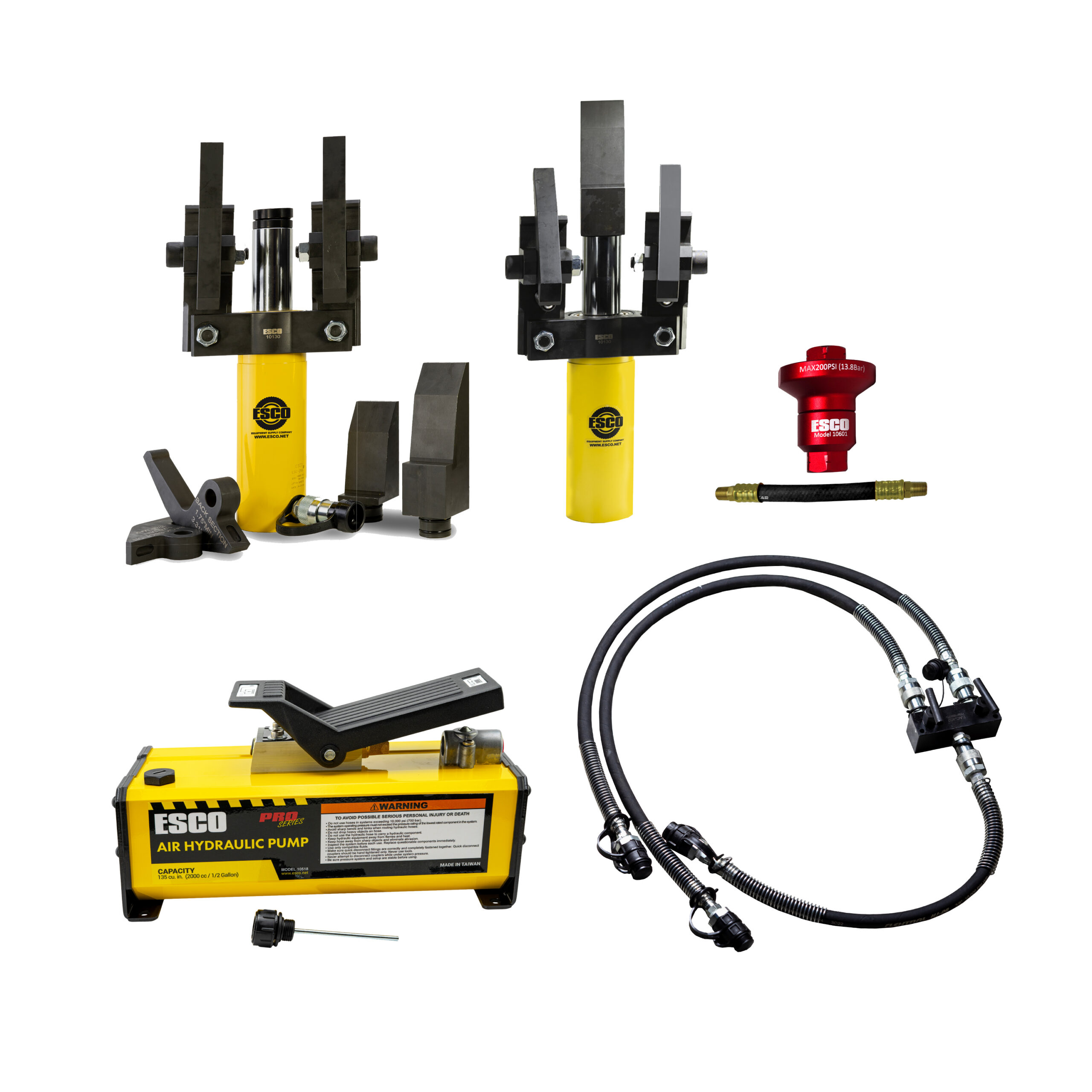

KIT INCLUDES:

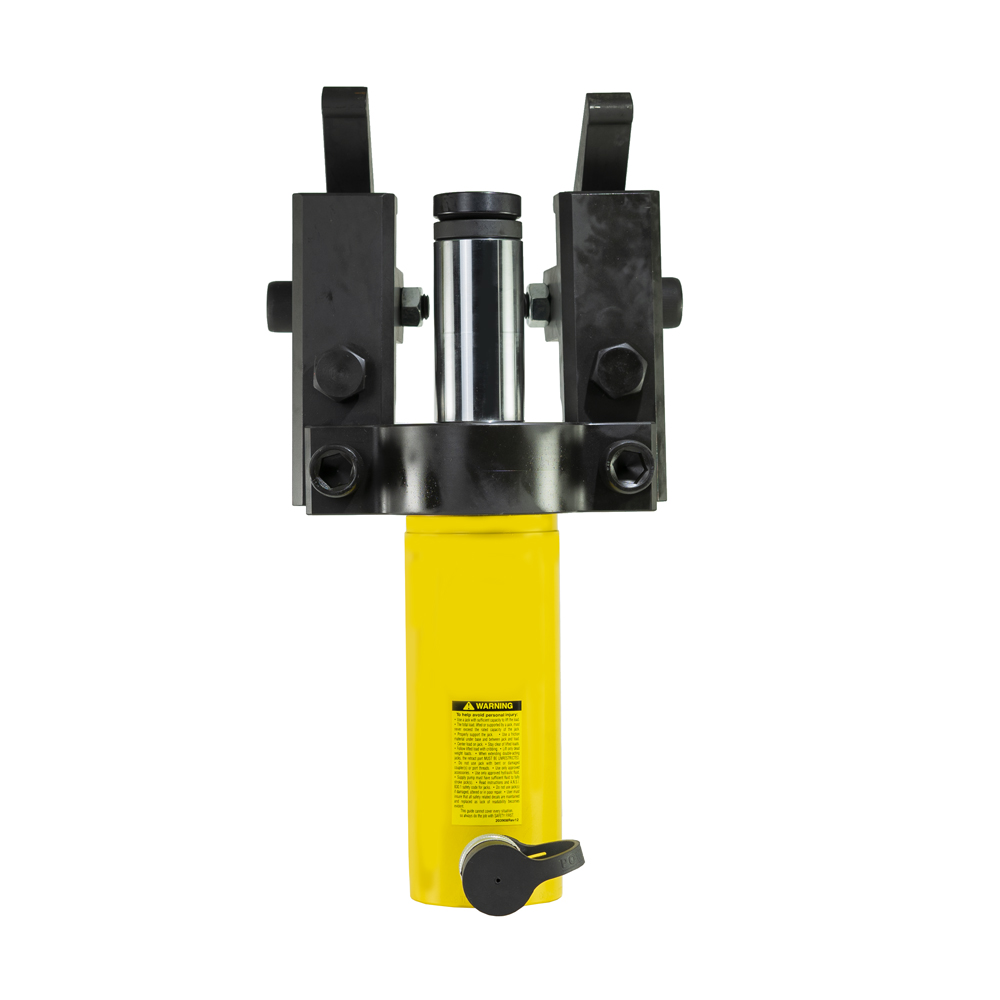

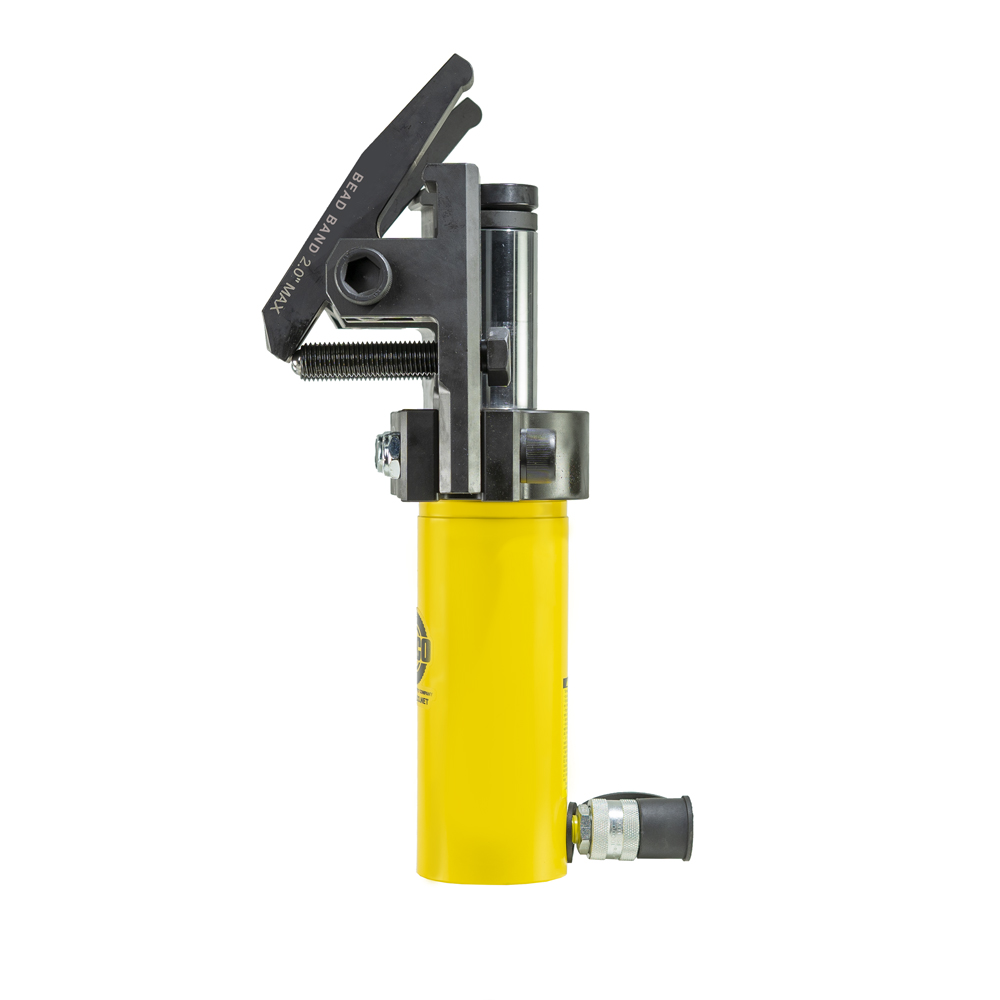

• 10144-K ESC3000 OTR GIANT TIRE BEAD BREAKERS – (2)
• 10518 AIR HYDRAULIC PUMP – 1/2 GALLON CAPACITY

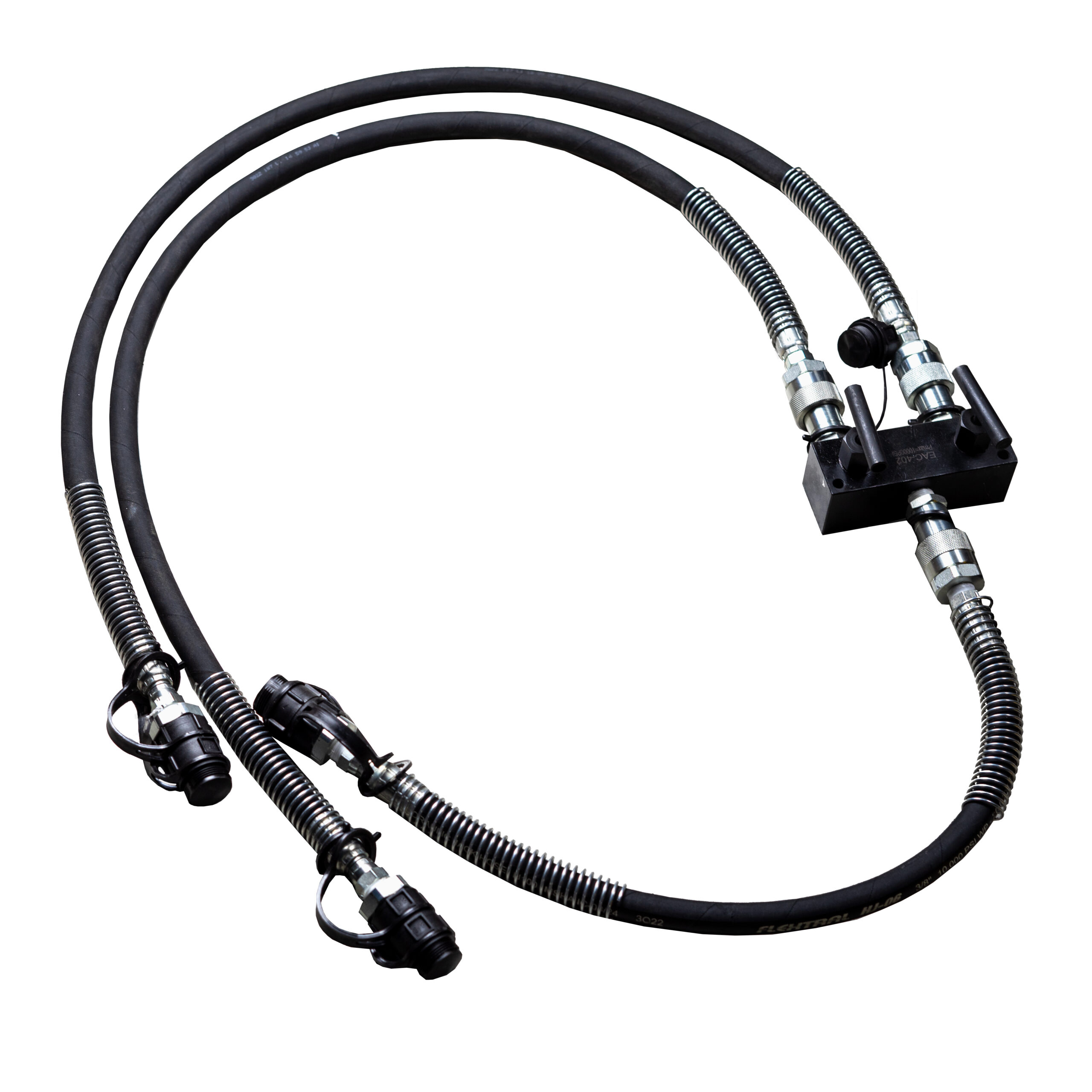

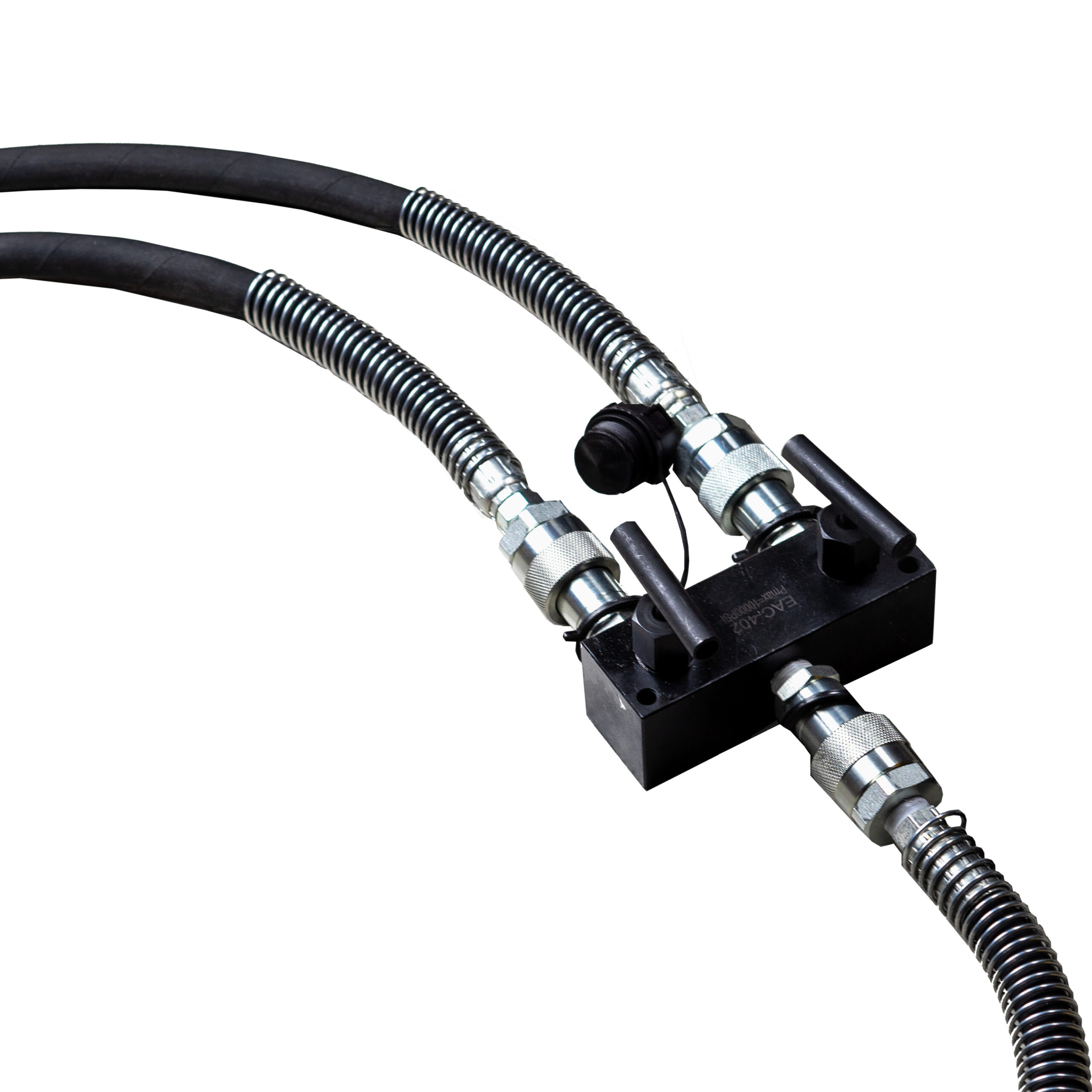

• 10624 DUAL MANIFOLD ASSEMBLY – INCLUDES HOSES, COUPLERS, AND VALVES

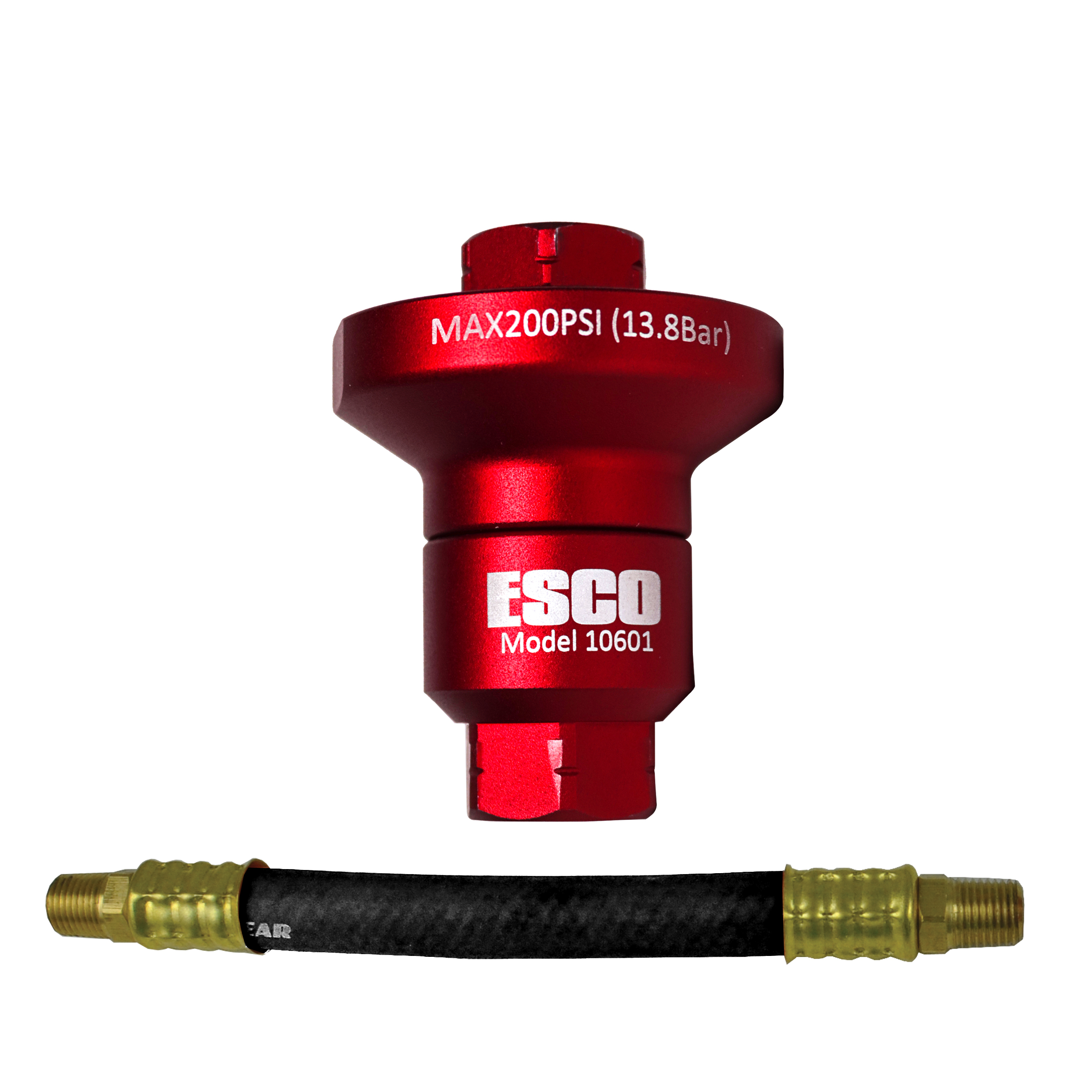

• 10601-K AIR REDUCER – WITH 6 IN. WHIP HOSE
