| Reader Unit | 3 in. | 75mm |
| Chuck Type | Clip On |
| Chuck Style | Single Straight |
| Scale | 0-174 psi, 1-12bar |
| Inlet Size | 1/4" NPT Female |
| Hose Length | 20 in. | 500mm with Swivel |
| Dimensions | 11 (L) x 6 (W) x 4 (H) in. | 279 x 152 x 101mm |
| Weight | 2.62 lbs. | 1.2 kg |
| Accuracy | +/- 2 psi @ 25-75 psi |
| Operation | Inflate, Deflate, Measure |
| Supply Pressure Max. | 200 psi | 1375 kPa |
| Advised Application | Industrial, Workshops |
| Inflation Flow | 42 cfm (1200L/min) @ 200 psi |
| Warranty | 1-Year |
| UPC | 816904024505 |

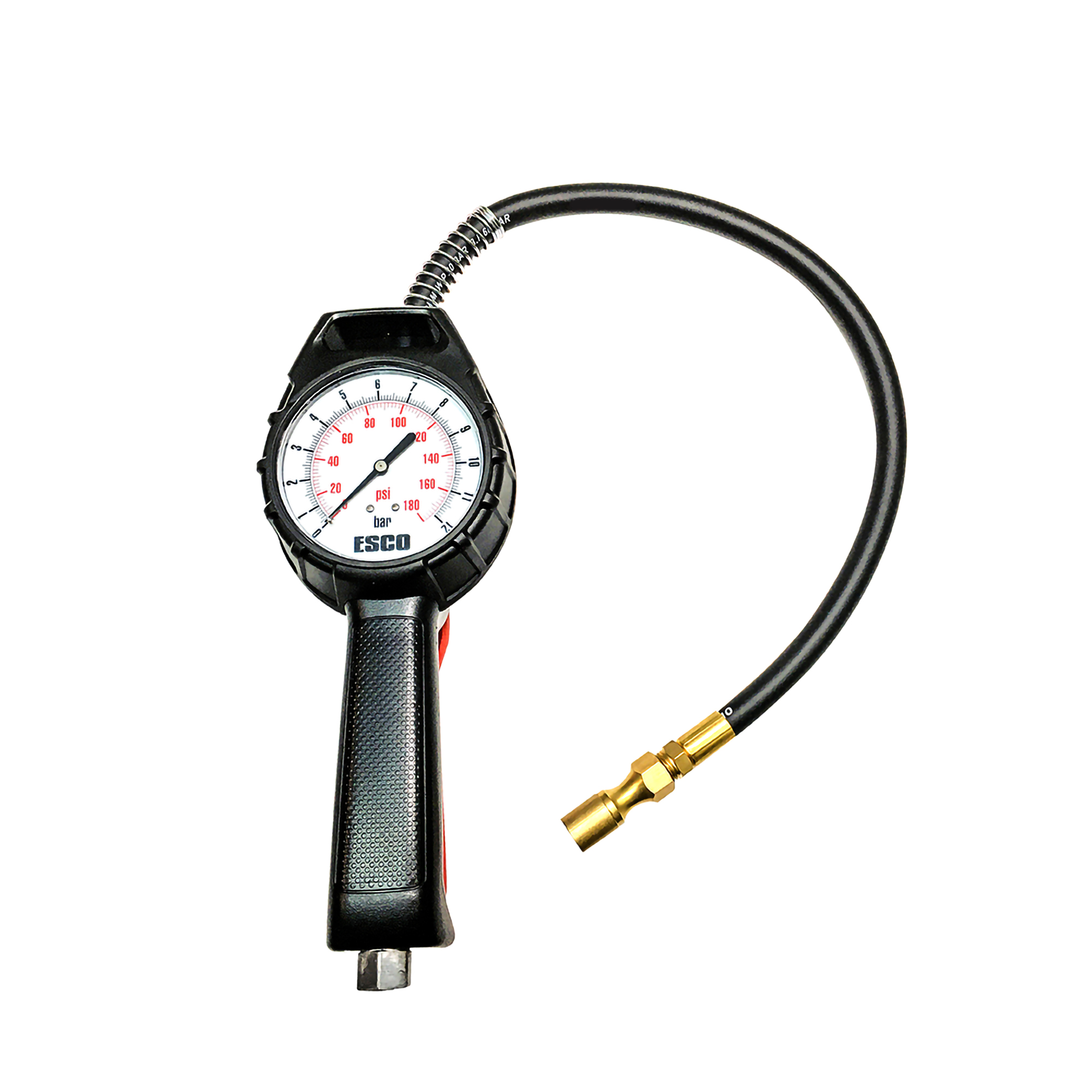

Dial Gauge Tire Inflator
Model #10960
The ESCO Dial Gauge Tire Inflator (Model #10960) is a handheld tire inflation unit designed for professional and hobbyist applications. The easy to read/measure large dial style, that reads both psi and bar, makes it ideal for any tire shop or personal garage. Constructed of a lightweight Aluminum die-cast body covered by a protective rubber sleeve, this unit is designed for maximum protection/strength of the inflation unit as well as comfort for extended use in the shop or at home. With an accuracy rating of +/- 2 psi and a 1-year warranty, this professional inflation unit is perfect for any application.
- Aluminum Die Cast Unit with Rubber Protective Sleeve
- Each unit is individually tested and calibrated (includes calibration certificate)
- Pressed Steel Operating Lever – Single Trigger Style
- Wire Sheath Hose – On flex area of hose for extra protection and to eliminate hose kinking and damage to air hose
- Air Chuck Style: Single Straight (Clip-on)
- Large Display for easy reading of psi/bar settings when inflating tire
