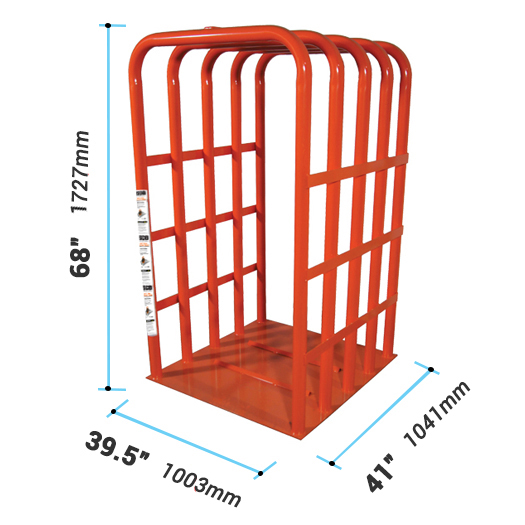

- Length: 41" | 1041mm
- Width: 39.5" | 1003mm
- Height: 68" | 1727mm
ESCO OTR Tire Inflation Cage
OTR tire inflation cage is used to in ate tires for trucks, military vehicles, tractors and aircrafts.
- Strongest Tire Cage on the market
- Built with 2” 51mm steel tubing 6% larger than the competitions’ tubing – welded to a 3/16” 5mm steel base with added reinforcements
- These safety cages, a mandatory precaution for tire inflation, provide good protection and exceed the requirements of OSHA Standard 29 CFR 1910.177 in the U.S.
- Before using the inflation cage, please read the instructions carefully
Dimensions (L x W x H): 41″ x 39 1/2″ x 68″ | 1041mm x 1003mm x 1727mm
Max. Tire Size: 62″ OD x 33″ W | 1574mm OD x 838mm W
Weight: 293 lbs. | 133 kg
