HD 10 Ton High-Lift Jack Stand

Model #10493

The ESCO HD 10 Ton High-Lift Jack Stand [Model #10493] is designed to provide extra heavy-duty support on raised vehicles. The High-Lift Jack Stand has a spring assisted shaft and up to 11 total adjustable pin positions for precise height. Also included is a adjustable lifting pad to support the load. With three spring loaded caster wheels, movability is simple and easy. The folding tripod design makes for easy storage.

  • Foldable tripod stand
  • Three-spring loaded wheels makes it easy to move
  • Adjustable Pin for precise height (11 positions)
  • Adjustable lifting pad for precise height
  • Spring assisted main shaft for safe and easy positioning

Min. Height: 43″ | 1096mm
Max. Height: 69.25″ | 1759mm
Lifting Capacity: 10 Tons | 20,000 lbs.
Weight: 200 lbs. | 90 kg

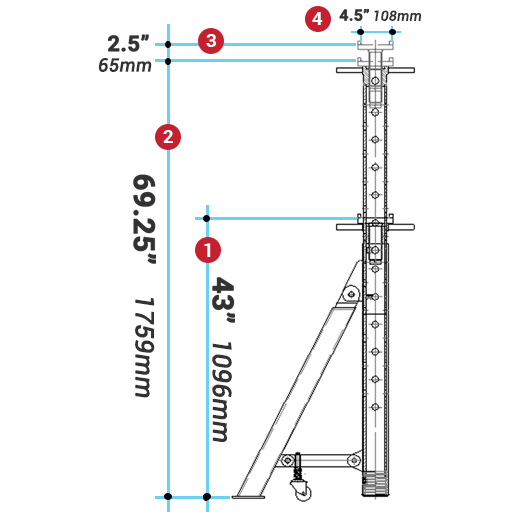

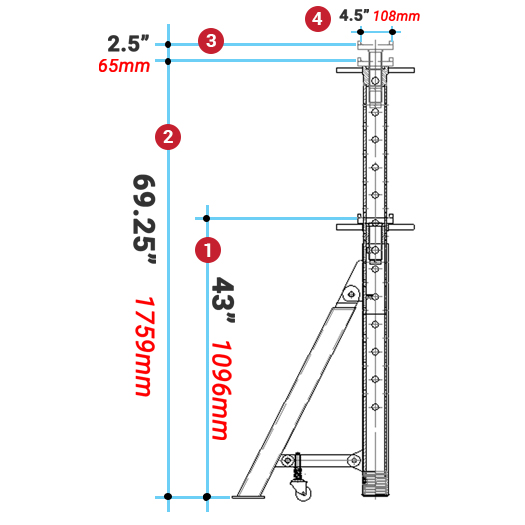

  1. Min. Height: 43" [1096mm]
  2. Max. Height: 69.25" [1759mm]
  3. Saddle Height: 2.5" [65mm]
  4. Saddle Width: 4.5" [108mm]

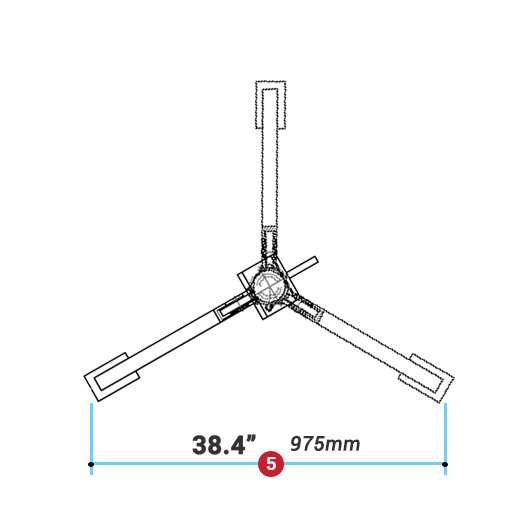

  5. Overall Width: 38.4" [975mm]
