Digital Wall Mounted Tire Inflator

Model #10964

The ESCO Digital Wall Mounted Tire Inflator (Model #10964) is a wall mountable inflation system cased in a heavy-duty steel housing, designed to be used indoors in an industrial or workshop environment. This standard wall mounted inflator can hold two programmable “pre-sets”, for quick access to common tire inflating pressures and can accurately inflate tires with up to 164 ft. of air hose. With an accuracy rating of +/- 0.3 psi and a 1-year warranty, this professional inflation unit is perfect for any application.

  • Two programmable pre-set functions (P1 & P2) for quick use with common inflation values
  • Designed with a heavy duty metal house
  • Large backlit LCD display
  • Inflates accurately with hose length up to 165 ft | 50 m
  • Operation: Inflate, Deflate, & Measure Air Pressure
  • OPS System – audible warning
  • Comprehensive Diagnostics & Error Reports

Max. Inflation: 174 psi | 12 bar
Scale: 174 psi | 12 bar | 1200 Kpa 12kgf
Inlet Size: 1/4″ NPT
Hose Length: 32 ft. | 10 m
Weight: 4.6 lbs. | 2.3 kg
Accuracy: +/- 0.3 psi @ 25-75 psi
Supply Pressure Max.: 182 psi | 12.55 bar

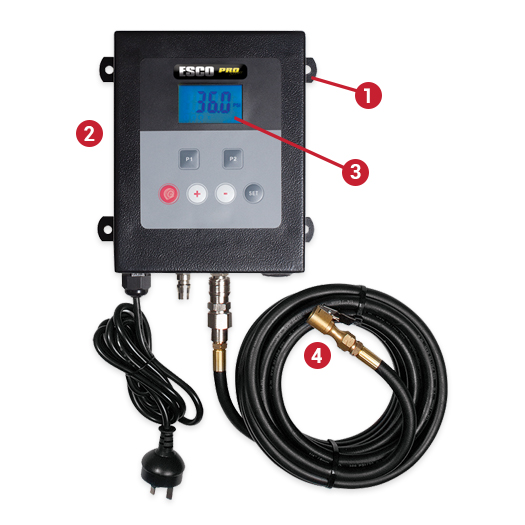

  1. Wall Mounted Auto Air Inflation System
  2. Heavy Duty Metal Housing
  3. Large Backlit LCD Display with Audible Warning
  4. 32 ft. Single Straight (Clip On) Air Hose Included
