Yellow Jackit 2.2 Ton Transmission Jack

Model #10812

Yellow Jackit Logo

The Yellow Jackit 2.2 Ton (4,400 lbs.) Transmission Jack is designed with heavy duty lifting in mind. Designed with maximum strength steel and a hefty weight capacity of 2.2 Tons (4,400 lbs.). The units also come with swiveling casters to make it easier to roll across concrete garage floors; making it easier on the technician when removing/installing the transmission, and many other maintain assistance. This product is designed for Heavy Duty Truck, Commercial Truck, Bus, Agricultural, Construction equipment and machinery. Made to Conform to ANSI Standards.

  • Hydraulic System is protected with safety overload system
  • Wide chassis design provides maximum stability
  • Fully adjustable universal saddle, brackets and chain sling
  • Four 4” swivel casters help move jack easily
  • 360 degree rotatable pump handle for operation in any position
  • Easy access to relief valve to lower the jack
  • Sealed hydraulic unit prevents contamination

Lifting Capacity: 2.2 Ton | 4,400 lbs.
Min. Height: 8 1/2″ | 216 mm
Max. Height: 34″ | 864 mm
Forward Tilt: 15 Degrees
Rear Tilt: 30 Degrees
Lift Tilt: 12 Degrees
Right Tilt: 12 Degrees
Head Width: 12″ – 18″ | 305 mm – 457 mm
Head Length: 16″ – 20″ | 406 mm – 508 mm
Width: 26″ | 660 mm
Length: 43″ | 1092 mm
Weight: 375 lbs. | 170 kg

1-Year-Warranty

108012_pd

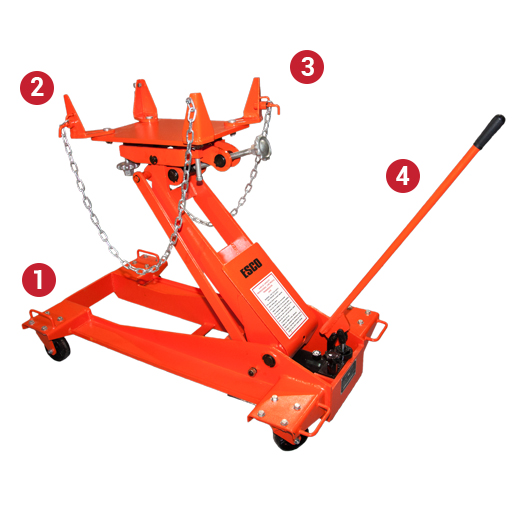

  1. Min. Height: 8 1/2" [216 mm]
  2. Max. Height: 34" [864 mm]
  3. Fully Adjustable Universal Saddle, Brackets, and Chain Sling
  4. 360 Degree Rotatable Pump Handle
